Home :: High Voltage Servos :: HV767 Aluminum upper Casing (0.118 sec/60° - 31.00 kg.cm (430.5 oz/in) @7.4V)
Printable version

HV767 Aluminum upper Casing (0.118 sec/60° - 31.00 kg.cm (430.5 oz/in) @7.4V)

HV767 Aluminum upper Casing (0.118 sec/60° - 31.00 kg.cm (430.5 oz/in) @7.4V)

HV767
Details
SKU RC-MKS-HV767
Dead Band 0.0008 ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
(RX) Required Pulse 3.5 ~7.4 Volt Peak to Peak Square Wave
Operating Voltage 6.0 ~7.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.145 sec/60° degrees at no load
Operating Speed (7.4V) 0.118 sec/60° degrees at no load
Stall Torque (6V) 25.00 kg.cm (347.2 oz/in)
Stall Torque (7.4V) 31.00 kg.cm (430.5 oz/in)
360° Modifiable NO
Motor Type Coreless Motor
Potentiometer Drive Indirect Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type Titanium Gears
Programmable NO
Connector Wire Length 15.0 cm (5.9 in)

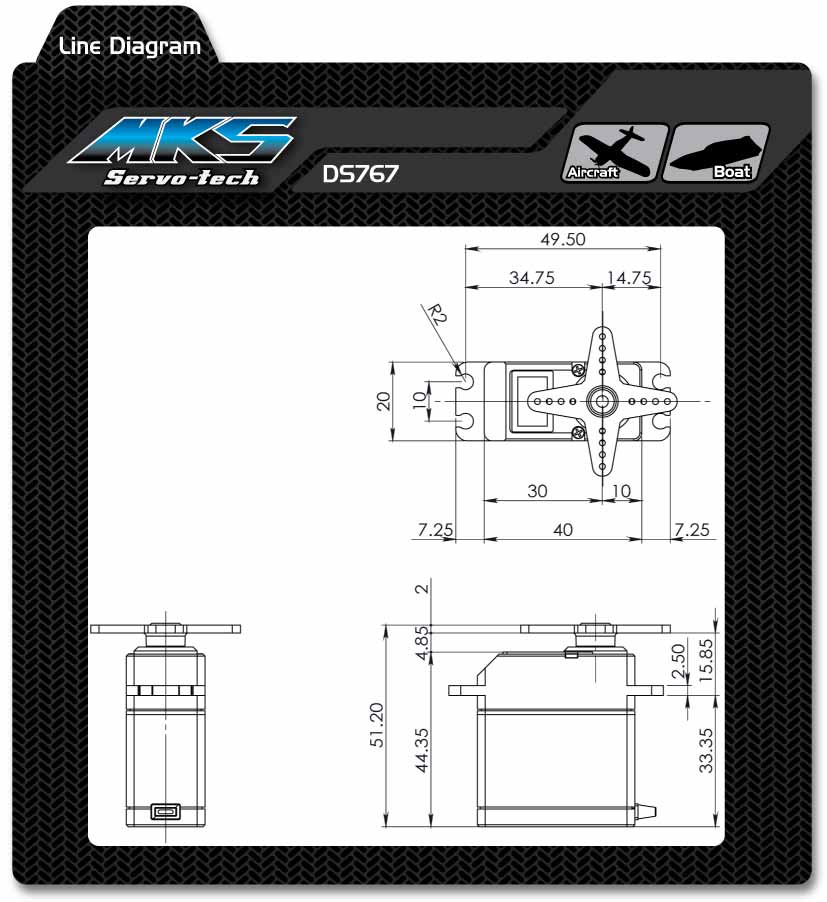

Dimensions 40X20X45 mm (1.57x0.97x1.77 in)
Weight 77.9 g (2.75 oz)

Our price: $99.95
Options
Quantity
: *
: *
: *

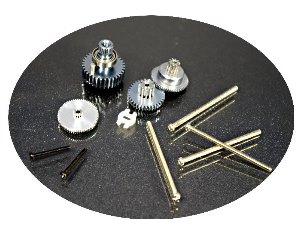

DS95 Gear set
