DS470 (0.085 sec/60° - 2.47 kg.cm (34.3 oz/in) @5V)

DS470 (0.085 sec/60° - 2.47 kg.cm (34.3 oz/in) @5V)

DS470
Details
SKU SKU-MKS-DS470
Dead Band 0.002ms (Default)
Control System +Pulse Width Control
Working Frequence 1500μs / 333hz data: 850μs~2150μs
(RX) Required Pulse 3.0 ~ 5.0 Volt Peak to Peak Square Wave
Operating Voltage 4.8 ~ 5.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.089 sec/60° degrees at no load
Operating Speed (5V) 0.085 sec/60° degrees at no load
Stall Torque (4.8V) 2.37 kg.cm (32.9 oz/in)
Stall Torque (5V) 2.47 kg.cm (34.3 oz/in)
360° Modifiable YES
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type Metal + Aluminum-magnesium alloy Gears
Programmable YES
Connector Wire Length 15.0 cm (5.9 in)
Dimensions 22.5X10X23.5 mm (0.89x 0.39x 0.93 in)
Weight 9.5 g (0.335 oz)

Our price: $31.50
Options
Quantity
: *
: *
: *

GD-4
DS6125 mini (0.10 sec/60° - 5.8 kg-cm (80.54 oz/in) @5.8V)

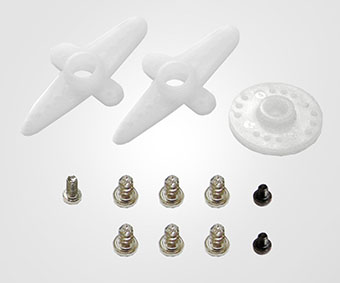

DS6125 Horn Set
