DS1009 (0.1 sec/60° - 8.8 kg-cm (122.2 oz/in) @6V)

DS1009 (0.1 sec/60° - 8.8 kg-cm (122.2 oz/in) @6V)
Details
SKU RC-MKS-DS1009
Dead Band 0.002ms (Default)
Control System +Pulse Width Control
Working Frequence 120Hz
(RX) Required Pulse 3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage 4.8~6.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.12 sec/60° degrees at no load
Operating Speed (6V) 0.1 sec/60° dagrees at no load
Stall Torque (4.8V) 7.04 kg-cm (TBA oz/in)
Stall Torque (6V) 8.8 kg-cm (122.2 oz/in)
360° Modifiable NO
Motor Type DC Motor
Potentiometer Drive Direct Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type metal gear
Programmable NO
Connector Wire Length 15.0 cm (5.9 in)
Dimensions 40X20X40.30 mm (1.5748X0.7874X1.58 in)
Weight 56 g (1.97 oz)

Our price: $38.95
Options
Quantity
: *
: *
: *

DS1210 (0.12 sec/60° - 10 kg-cm (138.87 oz/in) @6V)
HBL665 (0.10 sec/60° - 15.2 kg.cm (211.08 oz/in) @7.2V)
DS660A+ Aluminum upper Casing (0.149 sec/60° - 26.30 kg-cm (365.3 oz/in) @6V)
DS1210 (0.12 sec/60° - 10 kg-cm (138.87 oz/in) @6V) HBL665 (0.10 sec/60° - 15.2 kg.cm (211.08 oz/in) @7.2V) DS660A+ Aluminum upper Casing (0.149 sec/60° - 26.30 kg-cm (365.3 oz/in) @6V)
$35.95
$129.95
$112.50

DS6125 H (0.10 sec/60° - 5.2 kg-cm ( 72.21 oz/in) @5,8V)
DS9660A+ (0.09 sec/60° - 4.7 kg.cm (65.3 oz/in) @6V)
DS9670A+ (0.068 sec/60° - 2.83 kg.cm (38.3 oz/in) @6V)
DS6125 H (0.10 sec/60° - 5.2 kg-cm ( 72.21 oz/in) @5,8V) DS9660A+ (0.09 sec/60° - 4.7 kg.cm (65.3 oz/in) @6V) DS9670A+ (0.068 sec/60° - 2.83 kg.cm (38.3 oz/in) @6V)
$74.95
$69.95
$74.95

DS450 (0.115 sec/60° - 3.22 kg.cm (44.7 oz/in) @5V)
DS95/6125 Reinforced Middle Horn Set

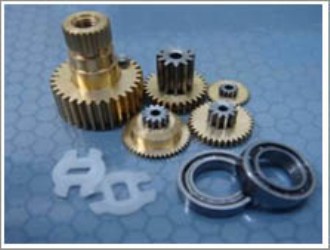

DS9660A+ Gear Set
DS450 (0.115 sec/60° - 3.22 kg.cm (44.7 oz/in) @5V) DS95/6125 Reinforced Middle Horn Set DS9660A+ Gear Set
$30.95
$5.50
$20.50
