S301 (0.14 sec/60° - 1.30 kg.cm @6V)

S301 (0.14 sec/60° - 1.30 kg.cm @6V)

S301
Details
SKU SKU-MKS-S301
Control System +Pulse Width Control
Working Frequence 1500μs / 333hz data: 850μs~2150μs
(RX) Required Pulse 3.0 ~ 6.0 Volt Peak to Peak Square Wave
Operating Voltage 4.8 ~ 6.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.14 sec/60° degrees at no load
360° Modifiable YES
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Driver Type FET

Our price: $17.50
Options
Quantity
: *
: *
: *

DS6675 Gimbal Servo
DS6125 Frames
DS95 (0.053 sec/60° - 3.05 kg-cm (42.36oz/in) @6V)
DS6675 Gimbal Servo DS6125 Frames DS95 (0.053 sec/60° - 3.05 kg-cm (42.36oz/in) @6V)
$77.99
$9.95
$78.50

DS6125/95 Long Metal Horn set

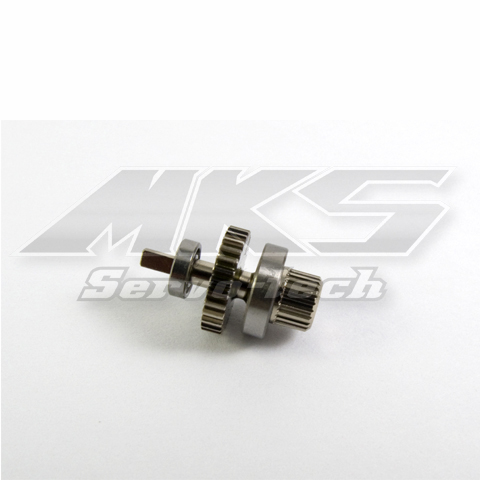

DS95i #8 Out-put Gear
