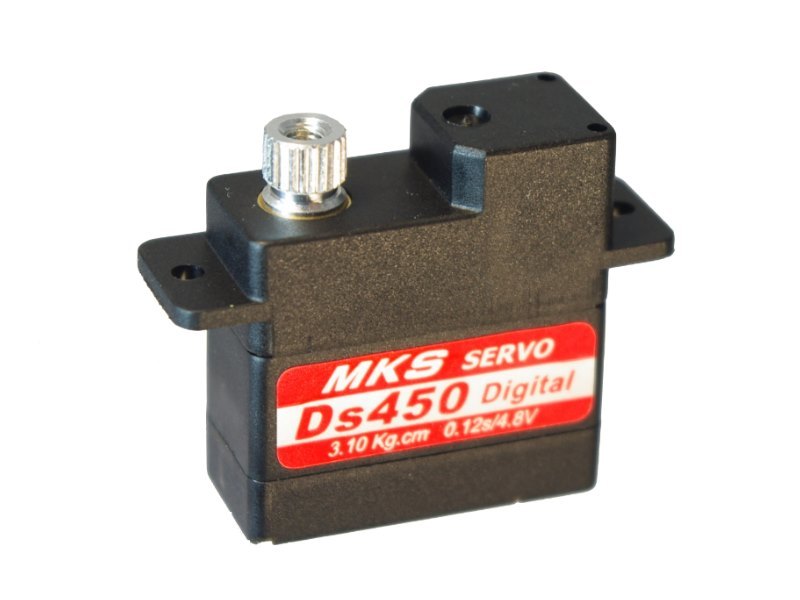

DS450 (0.115 sec/60Â° - 3.22 kg.cm (44.7 oz/in) @5V)

DS450

Details

SKU RC-MKS-DS450

Quantity in stock 77 item(s) available

Dead Band 0.002ms (Default)

Control System +Pulse Width Control

Working Frequence 1500μs / 333hz data: 850μs~2150μs

(RX) Required Pulse 3.0 ~ 5.0 Volt Peak to Peak Square Wave

Operating Voltage 4.8 ~ 5.0 V DC Volts

Operating Temperature Range -10 to + 60 Degree C

Operating Speed (4.8V) 0.120 sec/60Â° degrees at no load

Stall Torque (4.8V) 3.10 kg.cm (43.0 oz/in)

Operating Speed (5V) 0.115 sec/60Â° degrees at no load

Stall Torque (5V) 3.22 kg.cm (44.7 oz/in)

Motor Type Coreless Motor

Potentiometer Drive Direct Drive

Driver Type FET

Bearing Type Dual Ball Bearings

Gear Type Chrome-Titanium alloy gear

Programmable YES

Connector Wire Length 15.0 cm (5.9 in)

Dimensions 22.5X10X23.5 mm (0.89x 0.39x 0.93 in)

Weight 9.5 g (0.335 oz)

Our price: $35.19

Options

Quantity (77 available)
