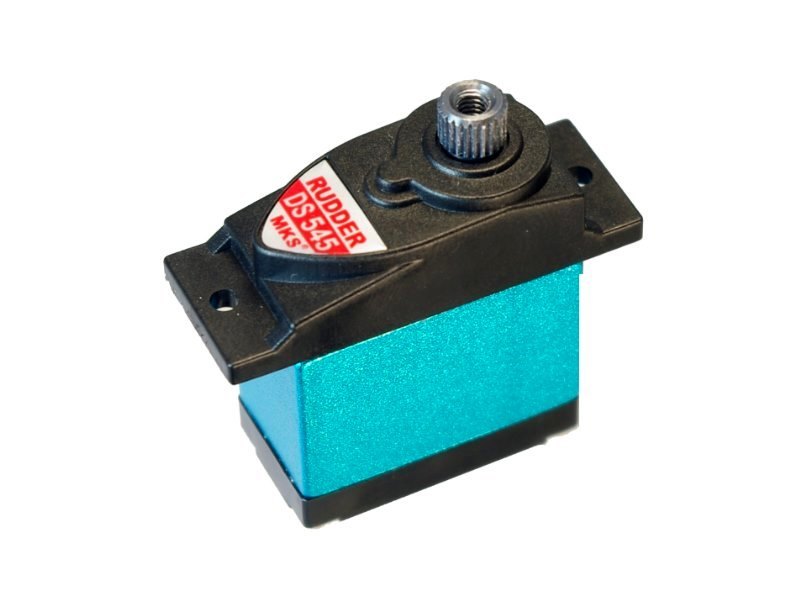

DS545 (0.070 sec/60° - 2.30 kg.cm (31.95 oz/in) @5V)

DS545 (0.070 sec/60° - 2.30 kg.cm (31.95 oz/in) @5V)
View detailed images (5)

DS545
Details
SKU SKU-MKS-DS545
Quantity in stock 1 item(s) available
Dead Band 0.002ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 80hz Digital mode/Analogy mode
(RX) Required Pulse 3.0 ~ 5.0 Volt Peak to Peak Square Wave
Operating Voltage 4.8 ~ 5.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.073 sec/60° degrees at no load
Stall Torque (4.8V) 2.20 kg.cm (30.56oz/in)
Operating Speed (5V) 0.070 sec/60° degrees at no load
Stall Torque (5V) 2.30 kg.cm (31.95 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Indirect Drive
Driver Type FET
Bearing Type Dual Ball Bearings

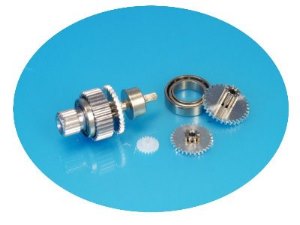

Gear Type Aluminum-titanium alloy Gears*4 + Plastic gear *1
Programmable YES
Connector Wire Length 15.0 cm (5.9 in)

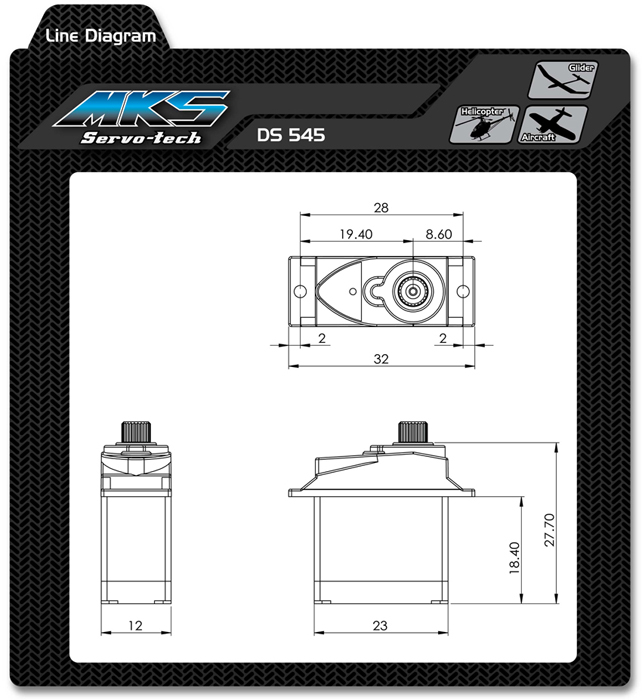

Dimensions 23X12X28 mm (0.9 x 0.47x 1.09 in)
Weight 14.5 g (0.51 oz)

Our price: $30.95
