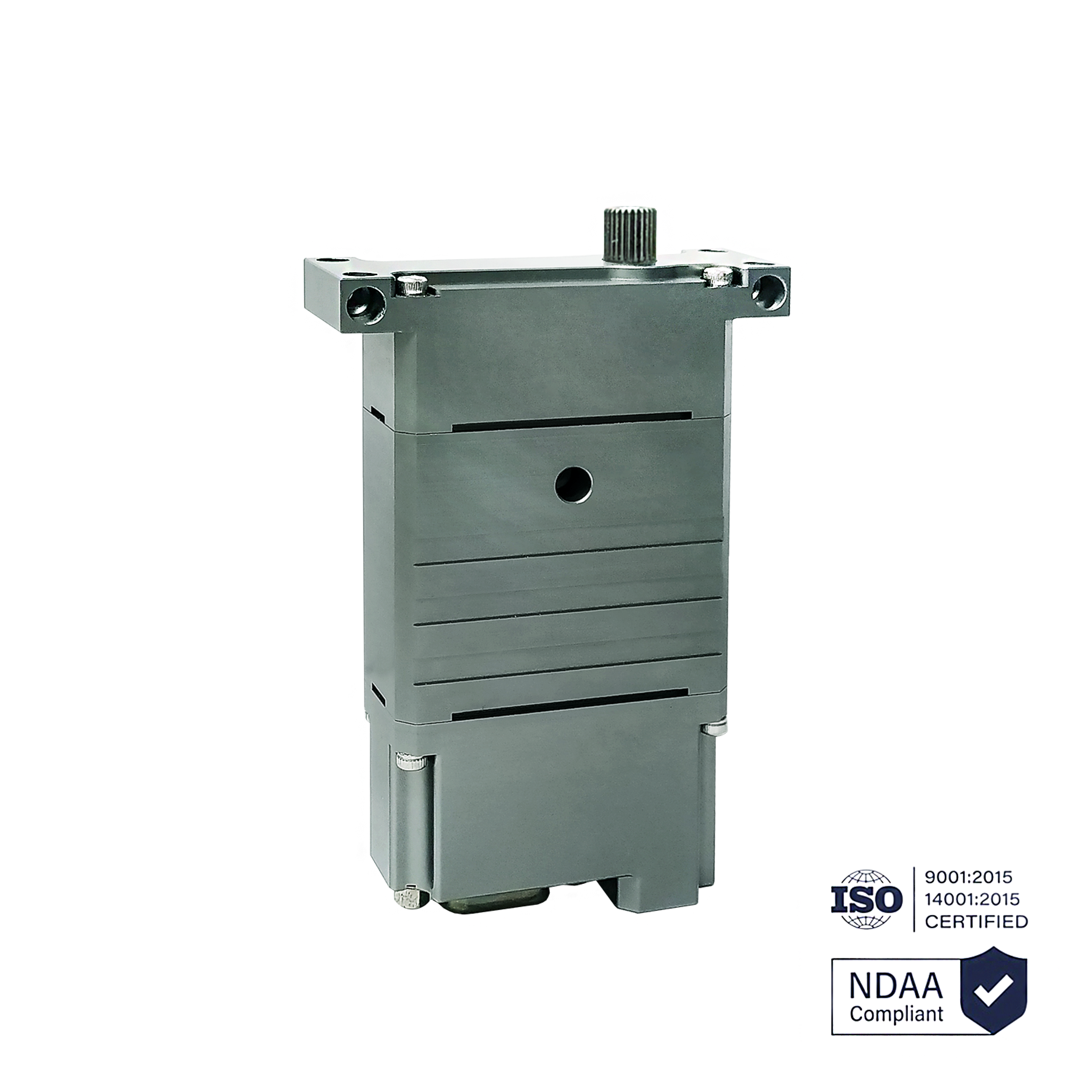

Z2300-24-10025-CHF DroneCAN

Z2300-24-10025-CHF DroneCAN
View detailed images (5)

DS75KThe Z2300 series, with unique hardened gearsbox and multi-pole brushless motor. Which can be used in a long-term loading. Suitable for fixed wing aircraft with the long air flight.
Details
SKU Zeus-Z2300-24-10025-CHF-90
Quantity in stock No items available
Control System DroneCAN (UAVCAN V.0)
Operating Voltage 16 ~ 30 V DC Volts
Operating Temperature Range -40 to + 70 Degree C
Operating Speed (24V) 0.257 sec/60°
Stall Torque (24V) 100 kg-cm (9.8 Nm, 1388.7 oz-in)
Motor Type Switzerland Made Brushless Motor
Potentiometer Drive Hall Effect Sensor
Gear Type Metal Alloy Gear

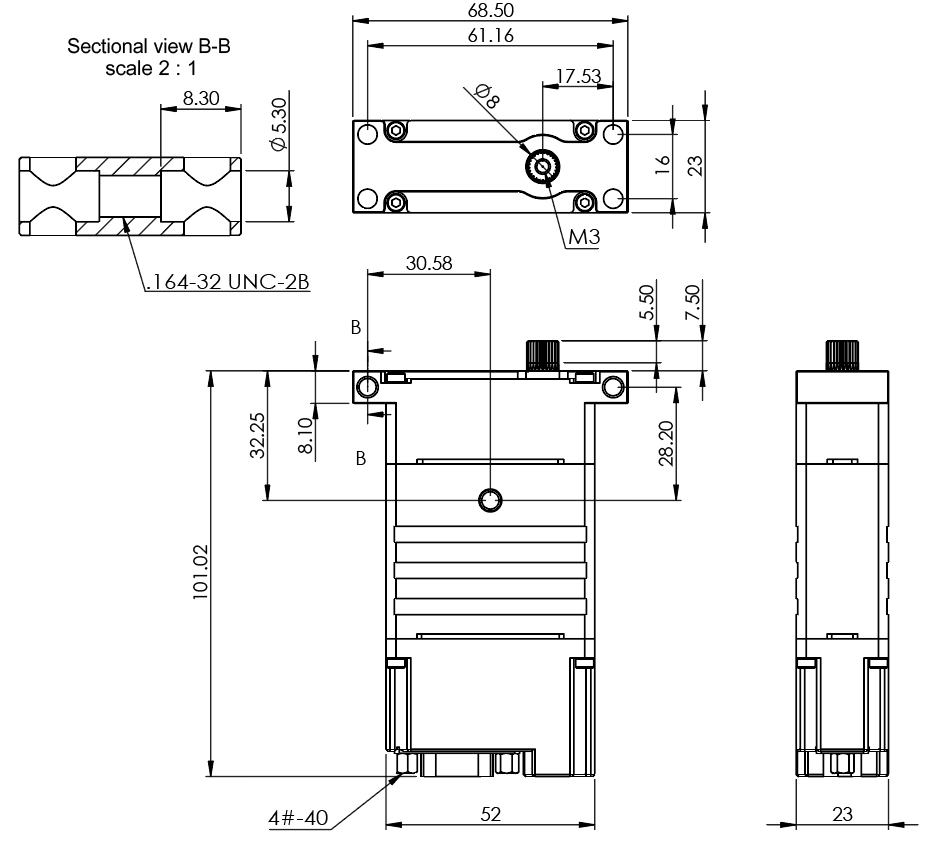

Dimensions 52 x 23 x 103.4 mm (2.04 x 0.89 x 4.07 inch)
Weight 280g (9.87 oz)

Our price: $1672.00
Options
Quantity Out of stock

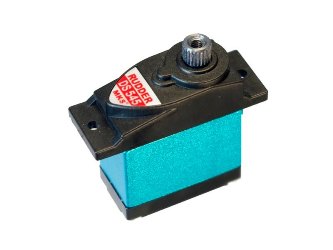

DS545 (0.070 sec/60° - 2.30 kg.cm (31.95 oz/in) @5V)
