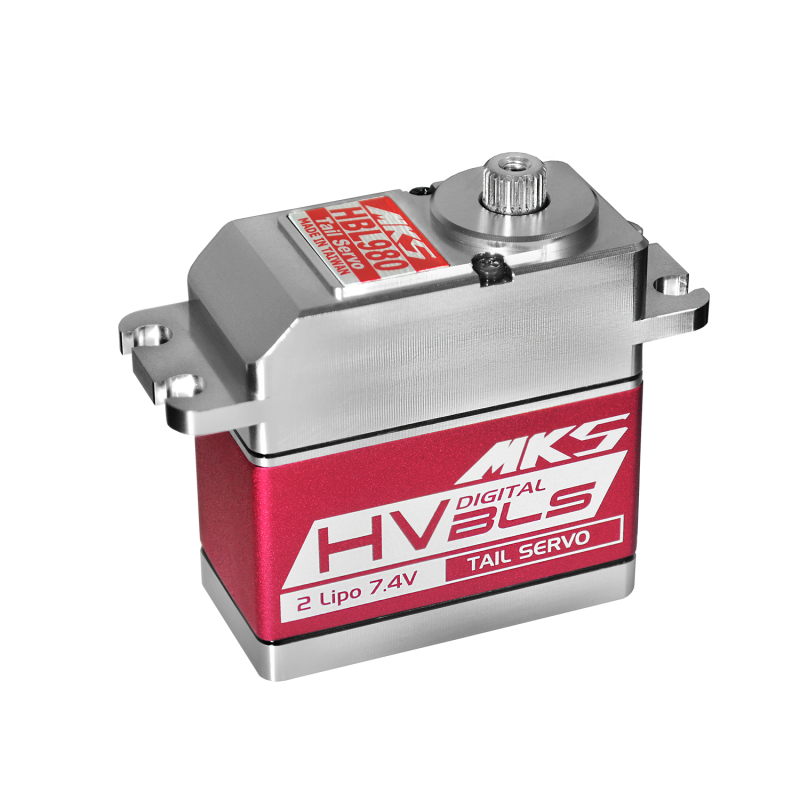

HBL980 (0.03 sec/60° - 86.1 oz/in @8.2V)

HBL980 (0.03 sec/60° - 86.1 oz/in @8.2V)
View detailed images (1)

HBL980
Details
SKU MKS-HBL980
Quantity in stock 18 item(s) available
Dead Band 0.0008ms (Default)
Spline Size 6mm 25 tooth
Control System +Pulse Width Control
Working Frequence 760us / 560hz
Operating Voltage 3.8 ~ 8.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.04 sec/60° degrees at no load
Operating Speed (7.4V) 0.036 sec/60° degrees at no load
Operating Speed (8.4V) 0.03 sec/60° degrees at no load
Stall Torque (6V) 62.5oz/in (4.5 kg.cm)
Stall Torque (7.4V) 77.8 oz/in (5.6 kg.cm)
Stall Torque (8.4V) 86.1 oz/in (6.2 kg.cm)
Motor Type Japanese Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type Dual Ball Bearings
Programmable Metal Alloy Gear
Connector Wire Length 24.0 cm (9.4 in)

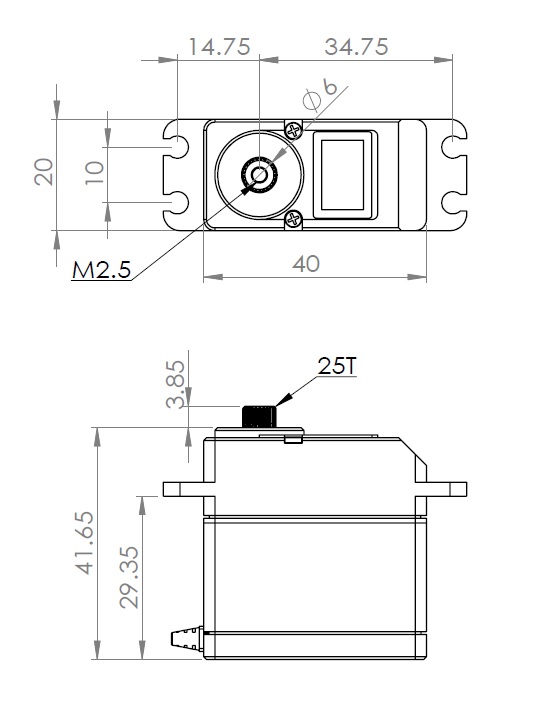

Dimensions 40 x 20 x 40 mm ( 1.57x0.79x1.50 in)
Weight 70.29 g (2.48 oz)

Our price: $153.99
