HV69-DroneCAN (0.10 sec/60° - 141.7 oz/in @8.2V)

HV69-DroneCAN (0.10 sec/60° - 141.7 oz/in @8.2V)
View detailed images (1)

HV69-DroneCAN
Details
SKU MKS-HV69-DroneCAN
Quantity in stock 68 item(s) available
Spline Size 6mm 25T
Control System DroneCAN (UAVCAN V.0)
Working Frequence 1000Hz
Operating Voltage 6 ~ 8.4 V DC Volts
Operating Temperature Range -30 to + 60 Degree C
Operating Speed (6V) 0.13 sec/60° degrees at no load
Operating Speed (7.4V) 0.11 sec/60° degrees at no load
Operating Speed (8.4V) 0.10 sec/60° degrees at no load
Stall Torque (6V) 7.5 Kg/cm (113.88 oz/in)
Stall Torque (7.4V) 9.2 Kg/cm (133.32 oz/in)
Stall Torque (8.4V) 10.2 Kg/cm (144.43 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Hall Effect Sensor
Bearing Type Dual Ball Bearings
Gear Type Metal Alloy Gear
Connector Wire Length Length : 25cm/26#/30 Core / 0.08mm Dupont 2.54 mm (4pin)

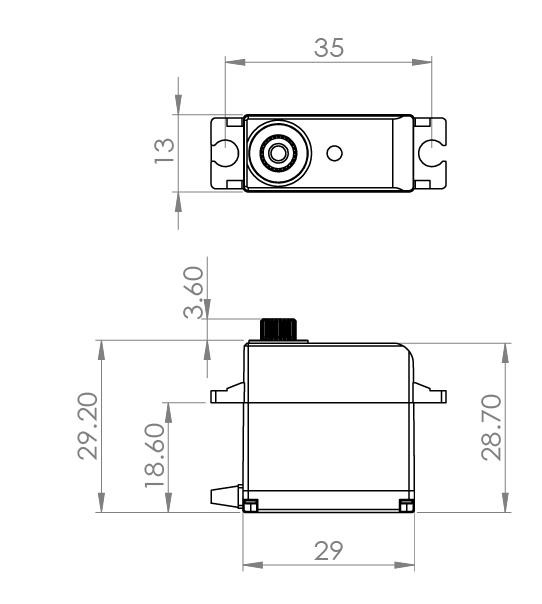

Dimensions 29X13X28.7 mm
Weight 25 grams

Our price: $98.89
