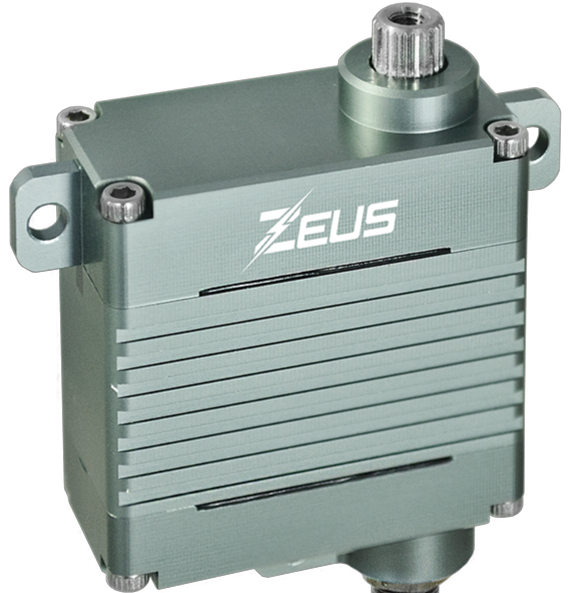

Z1500-12-2018-CHF-90 DroneCAN M5 Wire

Z1500-12-2018-CHF-90 DroneCAN M5 Wire
View detailed images (1)

The Z1500 series has ultra lifespan persistence and pass the operational test over 2000hrs under a rated load of 3kg-cm, which is suitable for the extraordinary reliability and lifespan required by various industrial applications of motion/remote control.


Details
SKU Z1500-12-2018-CHF-90 M5 Wire1
Quantity in stock 28 item(s) available
Dead Band 0.001ms (Default)
Spline Size 5mm
Control System DroneCAN (UAVCAN V.0)
Operating Voltage 7.0 - 15 V DC Volts
Operating Temperature Range -40 to + 70 Degree C
Operating Speed (12V) 0.18 sec/60
Stall Torque (12V) 6 kg/cm (83.3 oz/in) (0.58 NM)
Motor Type Brushless Motor
Potentiometer Drive Hall Effect Sensor
Gear Type Metal Alloy Gear
Connector Wire Length On Case

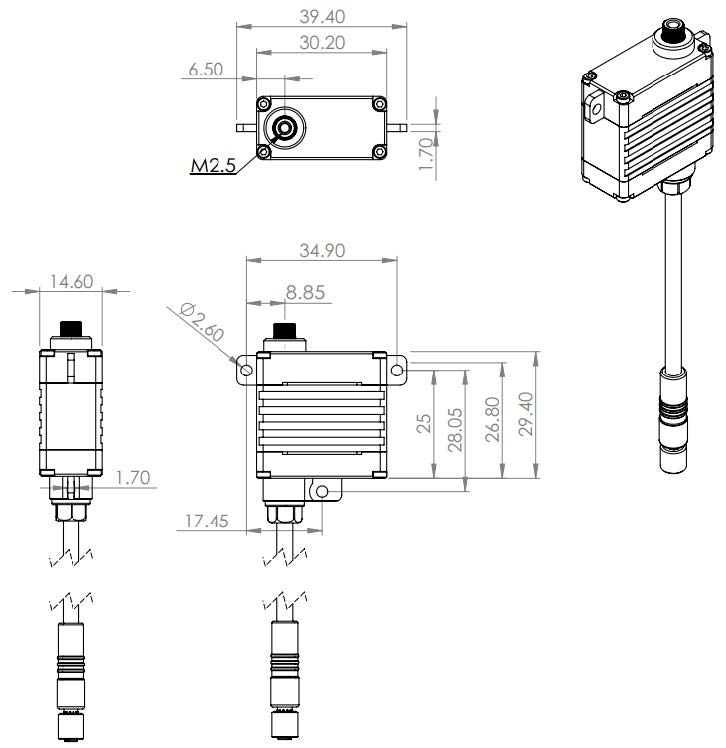

Dimensions 30.2 X 14.6 X 29.4 mm
Weight 36g (1.269oz)

Our price: $858.00
