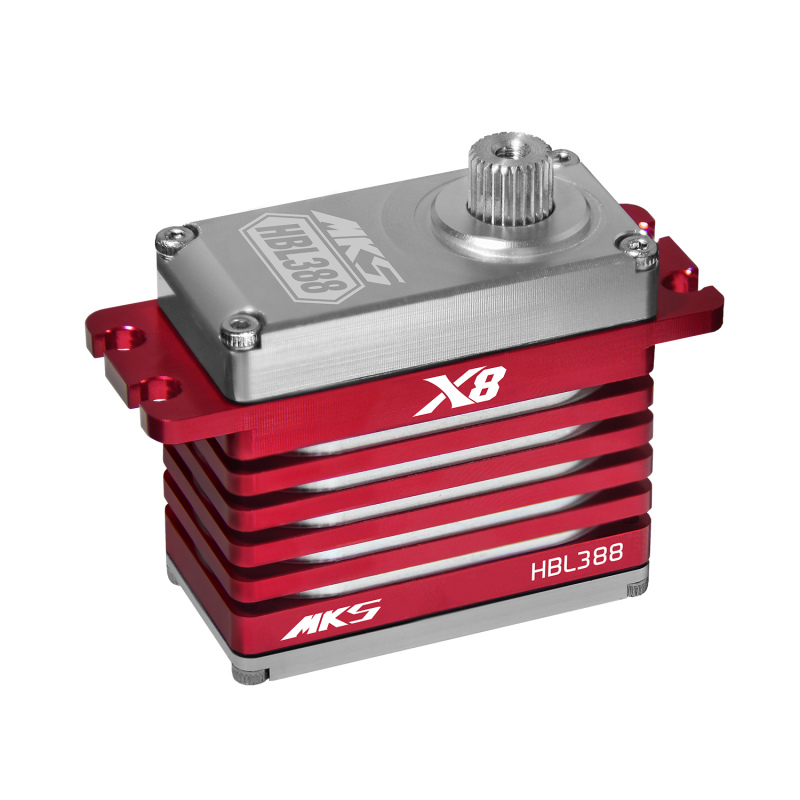

HBL388 (0.14 sec/60° - 944.3 oz/in @8.2V)

HBL388 (0.14 sec/60° - 944.3 oz/in @8.2V)
View detailed images (1)
Electric current draw - 8.4A max. (8.2V) / 7.5A max. (7.4V) / 5.9A max. (6.0V)
Details
SKU MKS-HBL388
Quantity in stock 919 item(s) available
Dead Band 0.0008ms (Default)
Spline Size 8mm 25tooth X8
Control System +Pulse Width Control (PWM)
Working Frequence 1520μs / 333Hz
Operating Voltage 5 ~ 8.4 Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.19 sec/60° degrees at no load
Operating Speed (7.4V) 0.16 sec/60° degrees at no load
Operating Speed (8.4V) 0.14 sec/60° degrees at no load
Stall Torque (6V) 694.3 oz/in (50 kg/cm)
Stall Torque (7.4V) 833.2 oz/in (60 kg/cm)
Stall Torque (8.4V) 944.3 oz/in (68 kg/cm)
Motor Type Japanese-made Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type 12x8 mm Double bearings
Gear Type Metal Alloy Gear
Connector Wire Length 29 cm
Dimensions 43 x 22 x 39.65 mm
Weight 93.3g (3.29 oz)

Our price: $199.99
