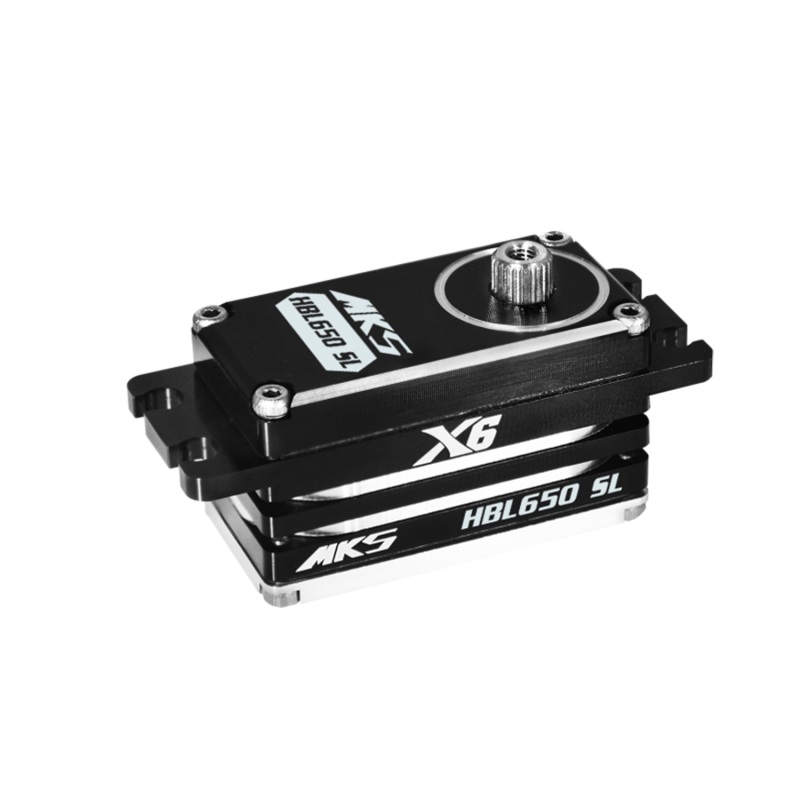

HBL650SL-760 NarrowBand (0.081 sec/60° - 352.7 oz/in @8.2V)

HBL650SL-760 NarrowBand (0.081 sec/60° - 352.7 oz/in @8.2V)
View detailed images (1)
SKU MKS-HBL650SL-760 NarrowBand
Quantity in stock 36 item(s) available
Dead Band 0.0001ms (Default)
Spline Size 6mm 25 tooth
Control System +Pulse Width Control
Working Frequence 760μs / 560Hz
Operating Voltage 4.8 ~ 8.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.11 sec/60° degrees at no load
Operating Speed (7.4V) 0.09 sec/60° degrees at no load
Operating Speed (8.4V) 0.081 sec/60° degrees at no load
Stall Torque (6V) 256.9 oz/in (18.5 kg.cm)
Stall Torque (7.4V) 318.0 oz/in (22.9 kg.cm)
Stall Torque (8.4V) 352.7 oz/in (352.7 kg.cm)
Motor Type Japanese Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type Dual Ball Bearings
Gear Type Metal Alloy Gear
Dimensions 40.5 x 20.5 x 23.1 mm
Weight 54 g (1.90 oz)
Our price: $178.09
Quantity (36 available)

HBL650SL Cyclic servo now available in 760us NarrowBand!
