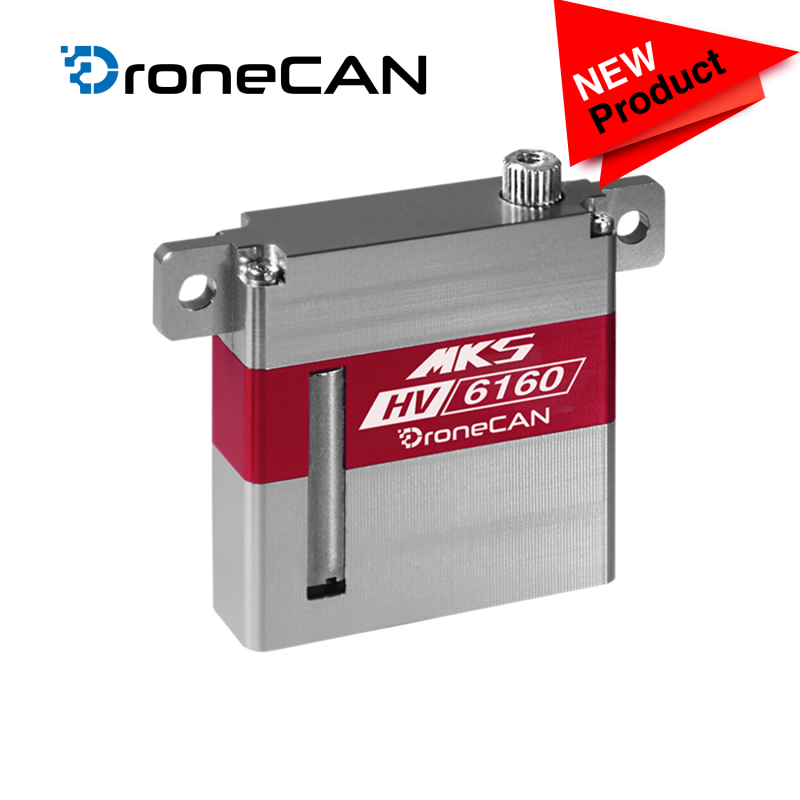

HV6160-DroneCAN (0.133 sec/60° - 258.3 oz/in @8.2V)

HV6160-DroneCAN (0.133 sec/60° - 258.3 oz/in @8.2V)
View detailed images (1)
SKU MKS-HV6160-DroneCAN
Quantity in stock 92 item(s) available
Dead Band 0.001 ms
Spline Size 5mm
Control System DroneCAN (UAVCAN V.0)
Working Frequence 1520μs / 333Hz
Operating Voltage 3.5~8.4 V DC Volt (2S Lipo un-regulated)
Operating Speed (4.8V) 0.230 sec/60° degrees at no load
Operating Speed (6V) 0.182 sec/60° degrees at no load
Stall Torque (4.8V) 11.7 Kg/cm (162.4 oz/in)
Operating Speed (7.4V) 0.147 sec/60° degrees at no load
Operating Speed (8.4V) 0.133 sec/60° degrees at no load
Stall Torque (6V) 14.5 Kg/cm (201.3 oz/in)
Stall Torque (7.4V) 17.0 Kg/cm (236.1 oz/in)
Stall Torque (8.4V) 18.6 Kg/cm (258.3 oz/in)
Motor Type Coreless Motor
Bearing Type 2*Oil-retaining Bearing
Gear Type Metal Alloy gear
Dimensions 33 x 10 x 35.2 mm
Weight 30.7g (1.08oz)
Our price: $118.64
Quantity (92 available)
Mighty powerful 10mm thick coreless offering in DroneCAN
